MH-M18 vs MH-M28 vs MH-M38 Compared

Model Iterations & Version Differences | Verified US Shipping & Price Updates

*Live promotional pricing updated for US buyers

A $0.59 Bluetooth board can modernize an old audio system—but choosing the wrong version can leave you with an incompatible output, audible interference, or a project that costs substantially more than advertised.

Evidence and pricing note: The $0.59 price and Bluetooth 4.2 designation come from the supplied product description. No specific listing URL, manufacturer-controlled datasheet, or physical sample was supplied. Accordingly, this guide distinguishes common marketplace configurations from verified specifications and proposed measurements from actual test results. These model names do not guarantee identical hardware across sellers.

1. Executive Briefing & Market Dynamics

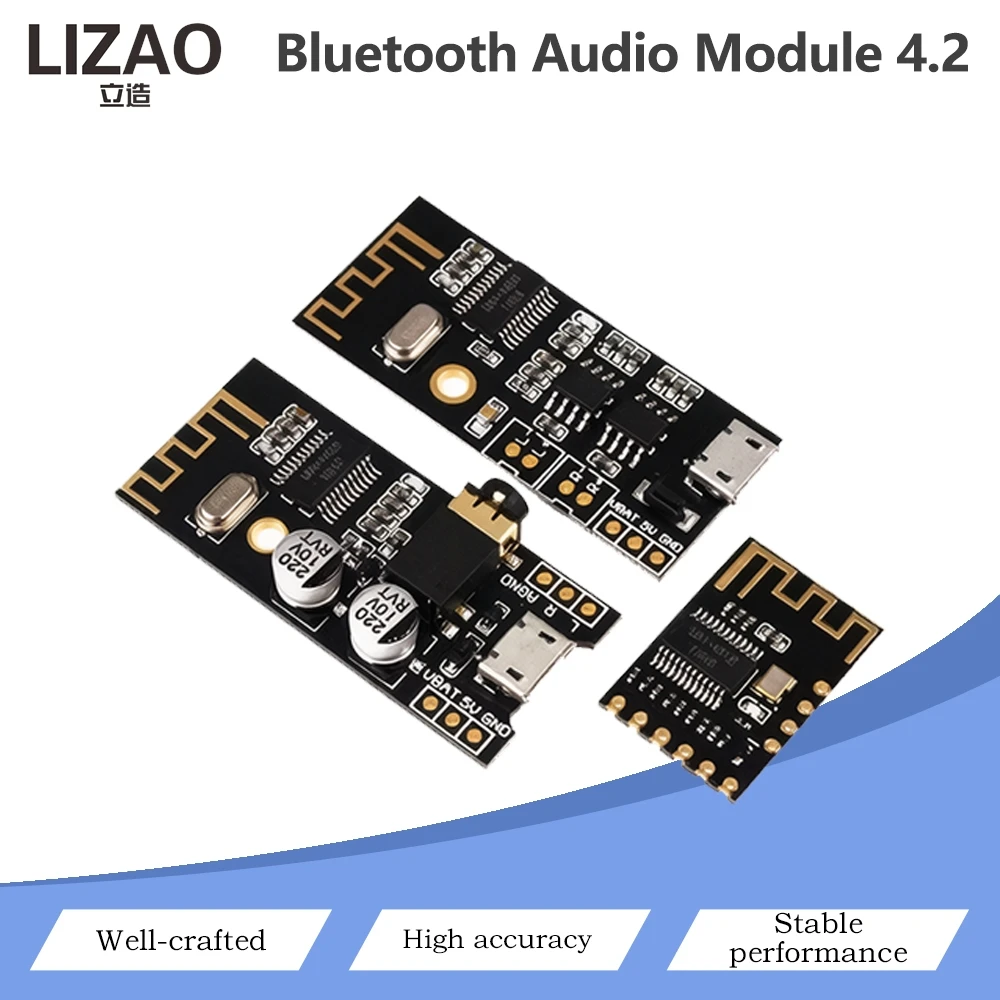

The MH-M18, MH-M28, and MH-M38 occupy the component end of the Bluetooth audio market: inexpensive receiver boards intended for installation inside other equipment. They are not finished Bluetooth speakers, USB sound cards, or necessarily ready-to-use adapters. Their appeal is straightforward: add wireless music reception to an amplifier, powered speakers, or a custom enclosure without replacing the entire system.

Think of these models as alternative configurations, not successive generations. A higher number does not establish a newer Bluetooth radio, better digital-to-analog conversion, lower latency, or greater reliability. Commonly circulated MH-M18 designs emphasize solder-pad integration; MH-M28 designs commonly provide a 3.5 mm analog connection; MH-M38 designs commonly incorporate speaker amplification. Those are useful starting points, not substitutes for photographs and documentation of the selected variant.

The broader consumer context favors this kind of retrofit. Wireless playback is familiar, while many phones no longer provide an analog headphone socket. Meanwhile, otherwise serviceable stereos remain useful for decades. A tiny receiver can bridge that mismatch—but bare boards transfer electrical integration, enclosure design, and troubleshooting to the purchaser.

Comparing $0.59 with a finished receiver sold through a US retailer is therefore misleading. Domestic products may include a housing, power supply, cables, regulatory documentation, inventory costs, customer support, and easier returns. Direct-marketplace pricing may omit all of those. Moreover, buying on AliExpress does not necessarily mean buying directly from the factory; storefronts can be distributors or resellers.

The displayed minimum may also apply to a particular connector, promotional offer, or inexpensive variant rather than every pictured board. Confirm the selected model and checkout total, including shipping, tax, and any import-related charges. For someone who already owns tools and an amplifier, the economics can be excellent. For someone starting from nothing, a finished receiver may deliver better overall value.

2. Technical Architecture, Component Engineering & Material Metallurgy

The basic signal path is Bluetooth reception, audio decoding, digital-to-analog conversion, and analog output. A speaker-driving version adds a power-amplifier stage. Bluetooth 4.2 describes a core wireless specification; it does not independently establish codec support, analog performance, or synchronization quality. For conventional A2DP music reception, SBC is the baseline codec. Treat AAC, aptX, LDAC, and low-latency claims as unsupported unless documentation identifies them.

For model selection, the decisive distinction is line-level output versus amplified speaker output. A line-output board connects to an amplifier or powered speaker input. It cannot properly power a passive loudspeaker. Conversely, a board with amplified outputs must not automatically be connected to an AUX input: its voltage, grounding scheme, and switching behavior may be incompatible.

Common MH-M18 layouts suit permanent soldered installations. Common MH-M28 layouts make connection to external equipment easier through an analog jack, although a jack alone does not establish headphone-driving capability. Common MH-M38 layouts target compact powered-speaker projects. Some small stereo amplifiers use bridge-tied-load outputs, with neither speaker terminal at ground. Joining their negative terminals or attaching them to a shared-ground input can damage hardware.

Board construction is equally important, but the listing title cannot establish its metallurgy. Low-cost modules typically use glass-reinforced epoxy circuit boards with copper conductors and soldered surface-mount components. The laminate grade, copper weight, solder alloy, contact plating, and connector-shell material remain unknown here. A gold-colored pad does not prove a specified gold thickness, and the presence of solder mask says nothing conclusive about compliance or assembly quality.

Layout influences audible noise and wireless stability. A printed antenna near an enclosure wall, battery, metal chassis, or ground plane may behave differently from the same board tested in open air. Preserve the antenna clearance indicated by the actual design. Keep analog wiring short and separate it from switching power wiring and amplifier outputs.

Thermal requirements differ most sharply when amplification is added. A receiver feeding an external amplifier generally faces a lighter thermal burden than a board delivering speaker power. Amplifier efficiency still leaves heat to dissipate, especially near clipping or with a demanding load. Do not select a heatsink or operating limit without identifying the amplifier and its specifications.

Finally, exposed USB sockets and audio jacks are mechanical weak points. Repeated plugging can stress solder joints and lift pads. An enclosure with connector support, insulated mounting, and cable strain relief contributes more to practical durability than a higher model number. USB-C is convenient, but its presence does not certify stronger construction or correct operation with every USB-C supply.

3. Empirical Benchmarks & Real-World Stress Testing

No measured performance results are available for the supplied listing. Publishing a specific range, noise floor, latency figure, or battery runtime would therefore imply testing that has not occurred. A defensible comparison must begin by recording the seller, selected variant, board revision, chip markings, supply voltage, and firmware behavior for each sample.

For a consumer-relevant protocol, test at least three examples of each configuration where feasible. Use the same Android phone and iPhone, source files, playback settings, and power supply. Match analog output levels before listening; otherwise, the louder board can seem clearer simply because it is louder. Compare line outputs into identical input loads, and amplified outputs into rated dummy loads before connecting speakers.

Latency testing should capture a known timing reference and the resulting analog output through synchronized measurement equipment. Repeat enough times to report a median and spread, not a single favorable reading. Bluetooth 4.2 alone cannot predict the result. Decoder buffering and host behavior matter, and video applications may compensate for delay while musical instruments and games do not.

For noise and distortion, measure frequency response, channel balance, crosstalk, THD+N, and idle noise at stated output levels. Specify measurement bandwidth and whether weighting is applied. Decibels require context: dBV describes electrical voltage relative to one volt; dBA generally describes weighted acoustic sound pressure. A bare receiver has no meaningful room loudness rating without an amplifier, speaker, distance, and room conditions.

Wireless testing should include open-room operation, a phone carried in a pocket, an intervening wall, and a busy 2.4 GHz environment. Log dropouts and reconnection behavior rather than declaring a universal range. Repeat with the board inside its intended enclosure. A metal case may change the result substantially.

A useful daily-use stress protocol would run eight hours of music followed by an overnight idle period for seven days, with repeated pairing and power cycles. Record current during idle, streaming, reconnection, and loud passages on amplified models. Battery runtime must include converter losses and amplifier demand; battery capacity divided by an unspecified receiver current is not a trustworthy estimate.

Check for startup pops, pairing announcements, loss of saved pairing, connector intermittency, and supply-induced whine. For amplified versions, monitor chip temperature under a documented load and ambient temperature. These would be screening tests—not proof of years-long durability, formal safety certification, or statistically established failure rates.

4. Quantitative Specification & Performance Parameter Sheet

The most useful specification sheet separates what is advertised from what still needs confirmation. Here, numerical precision beyond the supplied price and Bluetooth designation would exceed the evidence.

For an amplified board, any power figure needs its supply voltage, speaker impedance, distortion threshold, and number of driven channels. A peak or heavily clipped rating is not interchangeable with continuous clean output. Line-output voltage likewise matters: too little can limit system loudness; too much can overload a sensitive input.

Dimensions, mounting-hole positions, temperature limits, and standby current also affect integration. Ask for a dimensioned drawing rather than estimating from photographs. If those details are unavailable, purchase only where experimentation and possible loss are acceptable. Unspecified is not automatically poor—but it is not verified performance.

5. Rigorous Pros, Cons & Trade-Offs Matrix

The principal strength is modularity. A receiver-only board lets an existing amplifier handle speaker power, avoiding duplication. An amplifier-equipped board can simplify a miniature speaker build. Neither architecture is categorically better; each eliminates some components while introducing different integration constraints.

The strongest budget argument is reuse: keeping good speakers and an amplifier while replacing only the missing wireless function. The weakest is assuming the board price represents the project price. Wiring, a safe power supply, an enclosure, and troubleshooting time can dominate the total.

Noise is another system-level trade-off. A receiver may perform acceptably on an isolated bench supply yet buzz when connected to an amplifier sharing a noisy power rail. Ground routing, switching converters, and charging equipment can matter as much as the receiver itself. Replacing the board with another nominal model may not solve that problem.

Usability compromises deserve equal weight. A bare module may lack accessible volume controls, a clear pairing button, configurable prompts, or predictable behavior with multiple remembered phones. Verify these functions rather than assuming familiar consumer-adapter behavior.

Finally, low replacement cost does not make every failure harmless. Incorrect polarity, shorts against a metal enclosure, or misuse of amplified outputs can damage connected equipment. These boards are best treated as hobby components, not unattended-installation products or documented substitutes for professionally integrated audio hardware.

6. US Logistics, Customs Clearance & Consumer Rights

US buyers should distinguish order acceptance, international dispatch, customs processing, and domestic delivery. Tracking visibility varies by service; inexpensive shipments may show only milestone events. USPS is not guaranteed to handle the last mile, and an international tracking identifier may not immediately produce useful results on the USPS website.

Import treatment is especially important because US rules affecting low-value shipments and goods from China have changed. Do not assume that a sub-$800 purchase is automatically duty-free, or that a $0.59 item cannot generate additional charges. Applicable treatment depends on current policy, origin, classification, and shipping arrangements. Check CBP guidance for internet purchases and the checkout disclosures before ordering.

Customs clearance is not a product-safety endorsement. For a Bluetooth transmitter-receiver, request applicable FCC authorization information and integration conditions. A generic FCC logo in a listing is not equivalent to a verifiable grant, and a module's authorization does not automatically resolve every requirement for a finished device. Official resources are available through the FCC equipment authorization program.

Likewise, AliExpress Choice should not be treated as a universal, unconditional guarantee. Delivery commitments, eligible returns, refund procedures, and buyer-protection deadlines depend on the specific order and applicable terms. Read the protections shown in checkout and retain screenshots of the selected variant and promised features.

Photograph the board on arrival and document missing parts or visible damage before soldering. Test promptly, preserve packaging, and submit any dispute within the displayed deadline. Return postage can exceed the purchase price. Payment-provider dispute options may also exist, but they have separate requirements and do not guarantee recovery.

7. Expert Buyer Advice & Technical FAQ

Which version should I choose?

For powered speakers or an amplifier with AUX input, prioritize a documented line-output version; a jack-equipped MH-M28 configuration is often convenient. For internal installation, an MH-M18-style board may be tidier. For passive speakers, consider an MH-M38 configuration only after confirming its amplifier, supported load, and supply requirements.

Does USB-C improve sound or provide USB audio?

No inherent improvement follows from the connector. It may supply power only. Correct USB-C sink implementation is needed for reliable power from compliant USB-C sources; some inexpensive designs work with USB-A-to-C cables but fail with C-to-C connections. Neither USB audio nor battery charging should be assumed.

Can I connect a lithium battery directly?

Only when the board explicitly supports the battery's entire voltage range. A conventional single-cell lithium-ion battery reaches approximately 4.2 volts when fully charged, but compatibility remains board-specific. Charging, overdischarge protection, and safe power-path handling are separate functions unless documented otherwise.

Will it work in a car or with a television?

Never connect a nominal USB-powered board directly to vehicle power. Automotive installations need appropriate voltage conversion and protection against electrical transients. Television use requires a compatible Bluetooth audio source, and lip-sync performance remains uncertain. Gaming and instrument monitoring are particularly sensitive to delay.

Is $0.59 genuinely a good buy?

For a technically comfortable hobbyist with existing tools, suitable power, and tolerance for variable quality, potentially yes. For someone seeking guaranteed compatibility and minimal setup, a finished receiver is the safer recommendation. Buy according to the documented output architecture—not the largest model number, the USB connector shape, or the lowest headline price.
